Insert moulding machine with toggle locking

01 · Vertical series

Vertical Injection Moulding Machine

Fully automatic vertical screw-type injection system with electro-proportionate hydraulic control for repeatable small and medium component moulding.

SSS-M35 / M45 20–45 ton class 30–125 g shot

Technical data	Unit	SSS-M35	SSS-M45
Injection unit
Screw diameter	mm	19/25/28	28/30/35
L/D ratio	L/D	18:1/16:1/14:1	18:1/16:1/14:1
Maximum swept volume	cc	40/54/67	86/90/140
Shot capacity (polystyrene)	g/shot	30/40/60	75/100/125
Maximum injection pressure	kg/cm²	1900/1100/900	1350/1150/850
Variable screw speed	rpm	0-190	0-240
Injection stroke	mm	100+10	140+10
Hopper capacity	litre	5	10
Nozzle retraction stroke	mm	100	125
Nozzle contact force	tons	3	5
Clamping unit
Mould clamping load	tons	20	45
Mould platen size	mm	410×410	435×435
Distance between tie bars	mm	270×250	280×280
Maximum mould size	mm	300×250	300×280
Maximum mould opening	mm	190	250
Min./max. mould thickness	mm	38×100	75×150
Min./max. mould thickness	mm	100×250	150×350
Maximum daylight opening	mm	370	600
Hydraulic ejection stroke	mm	40	50
Hydraulic ejection force	tons	1	1.5
Electricals
Pump motor, 3 phase	hp/kW	3/2.25	5/3.75
Heating load	kW	3.5	3.8
Installed total power	kW	5.75	7.55
Heat controller pyrometer / energy regulator	Nos.	3/1	3/1
General
Floor space	mm×mm	500×1220	1500×700
Height	mm	3150	3200
Approximate weight	tonne	1.75	2.3
Oil tank capacity	litre	125	100

Technical data reproduced from the supplied SSS-M Series brochure. Final machine configuration is confirmed against the mould and material before order.

Request configuration

Toggle-locking series

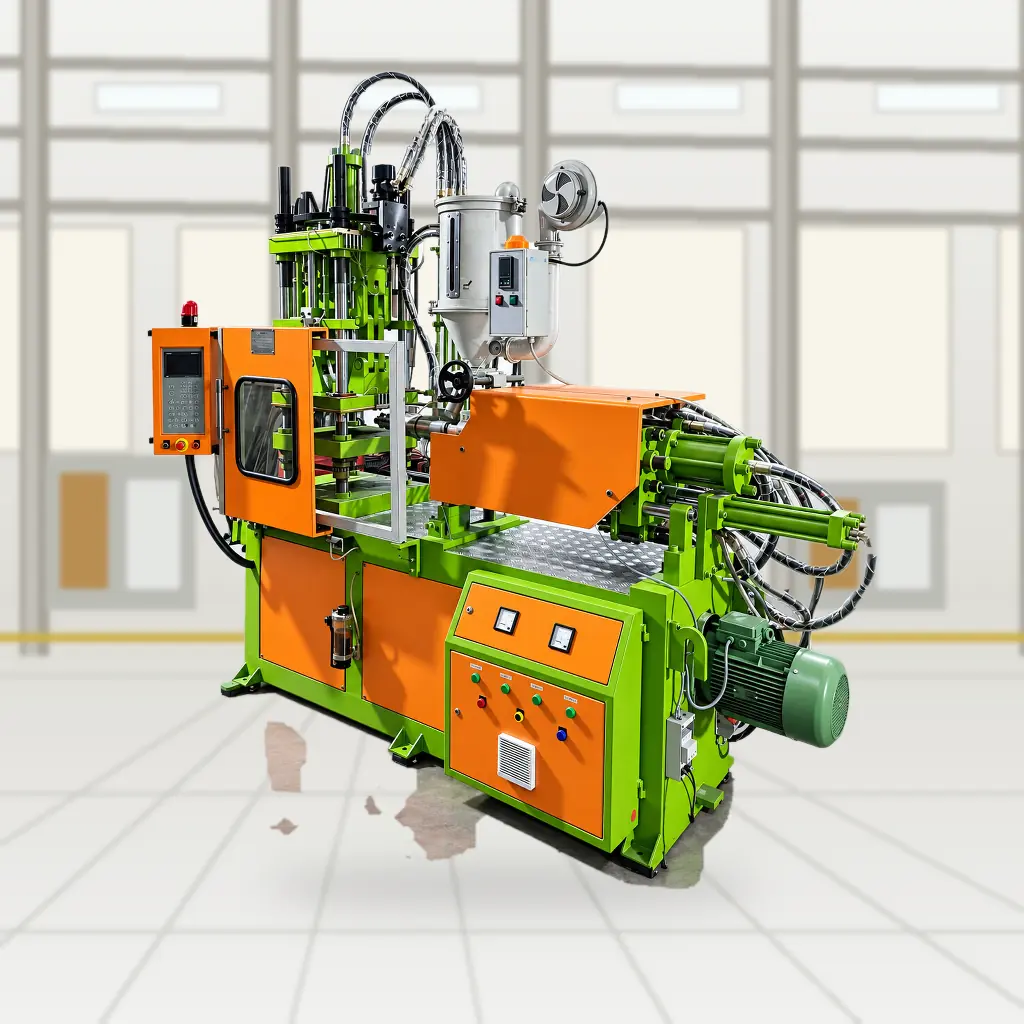

Insert Moulding Machine – Toggle Locking

A robust insert moulding configuration using toggle locking for stable clamping, accessible insert placement and dependable repetitive production.

Toggle locking Insert moulding Stable clamping

Clamping layout	Vertical clamp
Injection layout	Horizontal injection
Locking mechanism	Mechanical toggle linkage
Cycle control	Programmable pressure, speed and time
Primary applications	Insert and overmoulded components
Machine selection	Matched to mould, resin and shot

Published industry configuration for comparable toggle-locking insert machines. Final Gangotry ratings are application-specific.

Request configuration

02 · Insert series

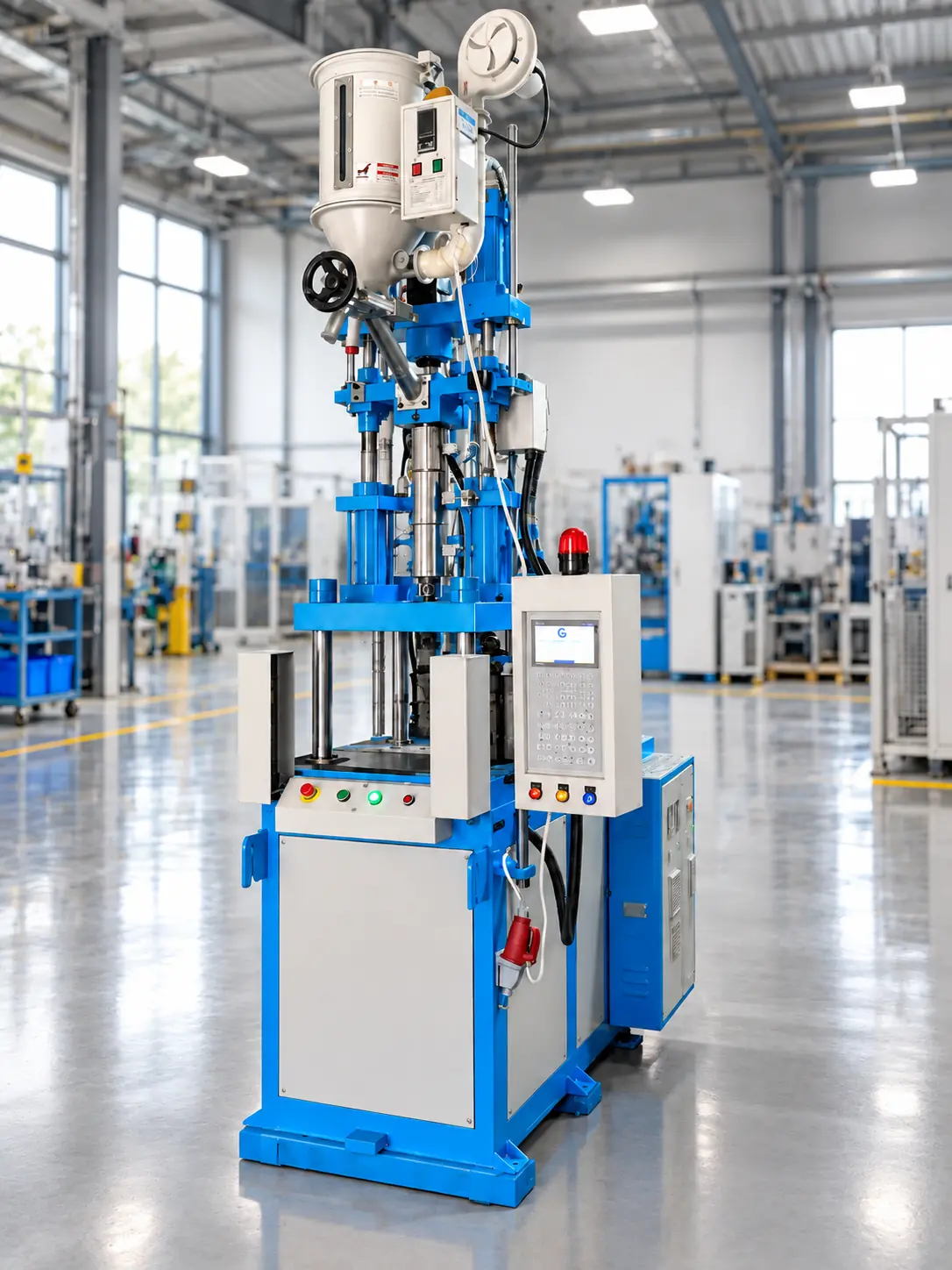

Vertical Insert Injection Moulding Machine

Vertical clamping with an accessible insert-loading area for overmoulding metal, electrical and engineered components.

Insert overmoulding Vertical clamp Accessible work zone

Configuration	Vertical clamping and vertical injection
Clamping structure	Four-column frame
Injection drive	Twin injection cylinders
Clamp cylinder	Double-acting hydraulic cylinder
Insert access	Open loading area for manual or assisted placement
Typical applications	Electrical, automotive, handle and metal-insert parts

Published industry configuration for comparable vertical insert machines. Platen, shot and clamp values are selected per mould.

Request configuration

03 · Rotary series

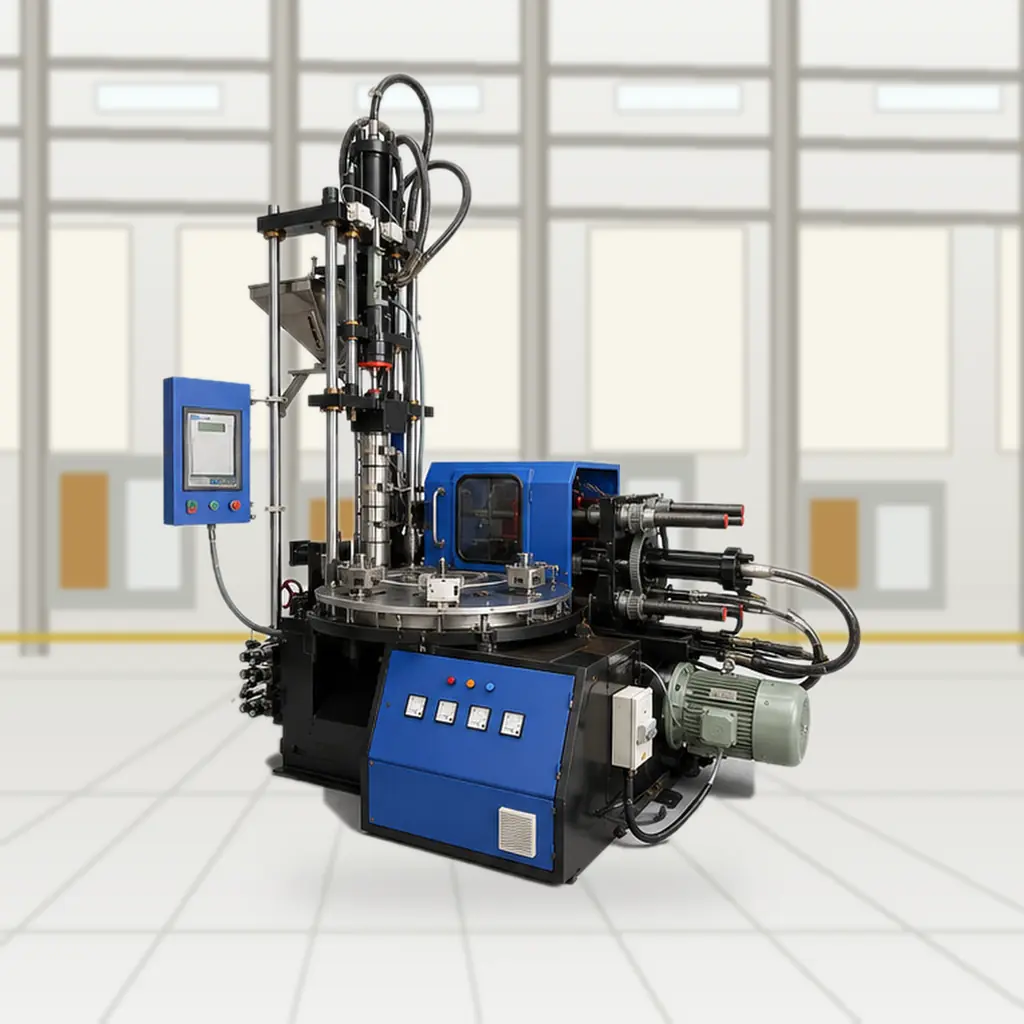

Vertical Rotary Injection Moulding Machine

An indexing rotary table enables loading and moulding in parallel, supporting faster and more consistent insert-production flow.

Rotary indexing Multi-station Parallel handling

Configuration	Vertical clamping and vertical injection
Table movement	180° indexing rotary table
Station arrangement	2 standard; 3 or 4 optional
Positioning	Locating-pin table positioning
Workflow	Load/unload while the opposite station moulds
Automation	Robot interface can be specified

Published industry configuration for comparable rotary-table machines. Table diameter and capacity are configured per application.

Request configuration

04 · Sliding series

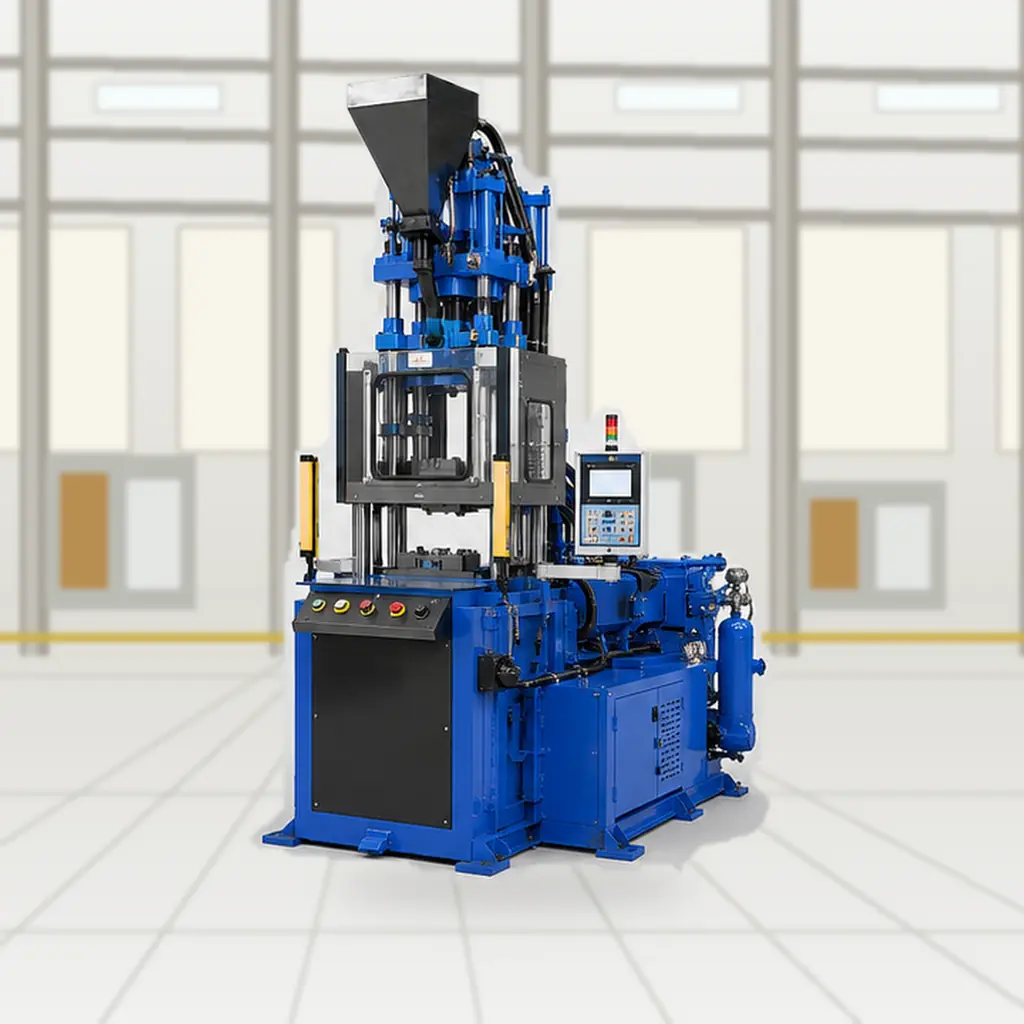

Vertical Insert Sliding Injection Moulding Machine

A sliding mould table creates an accessible handling position and helps separate operator loading from the active injection zone.

Sliding table Insert work Efficient handling

Configuration	Vertical clamping and vertical injection
Table arrangement	Single or double sliding table
Clamping structure	Four-column frame
Injection drive	Twin injection cylinders
Clamp cylinder	Double-acting hydraulic cylinder
Workflow	One position loads while the other moulds

Published industry configuration for comparable sliding-table machines. Travel, platen, shot and clamp values are confirmed per mould.

Request configuration

05 · Paver series

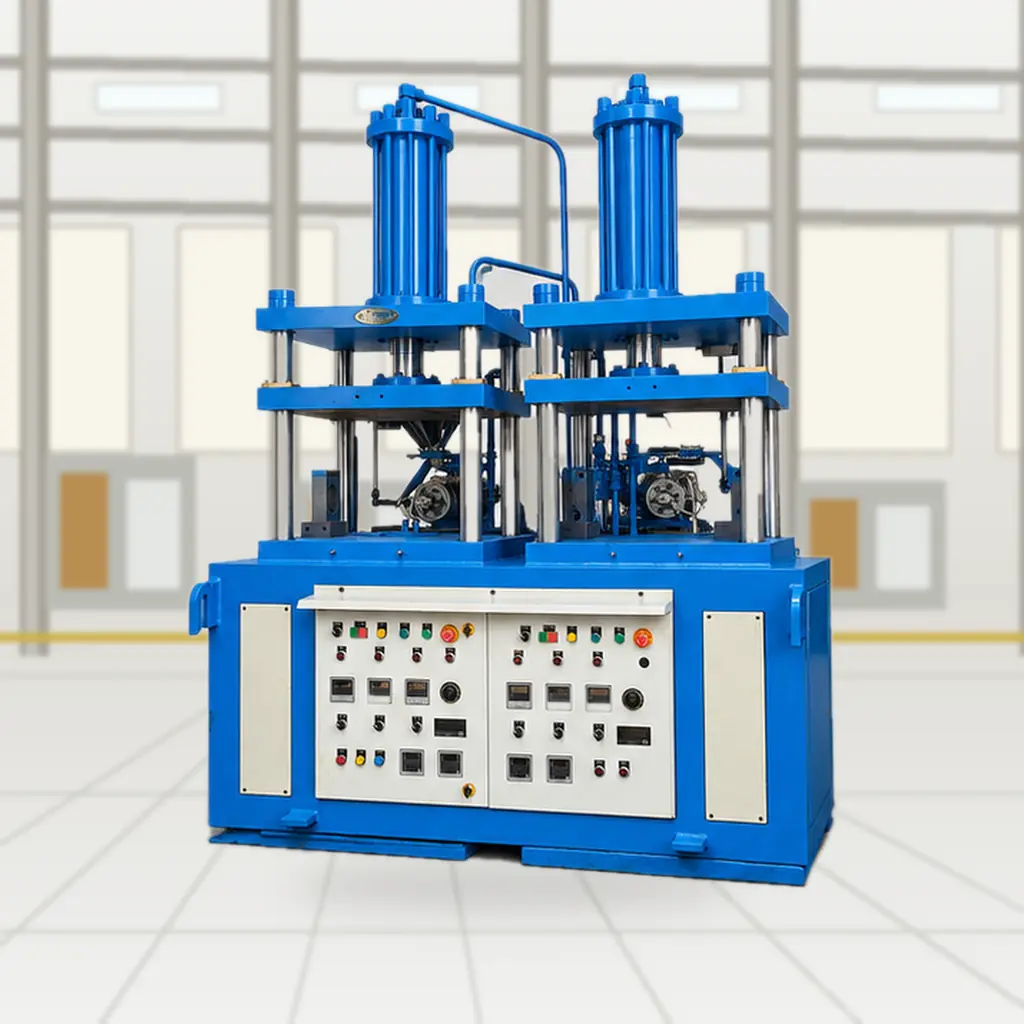

PVC Paver Block Moulding Machine

Automatic single and double-station systems for flexible PVC and rubber paver or tile mould manufacturing, shown using the exact supplied machine photographs.

Single station Double station 15–60 mould pairs/hr*

Operation	Automatic hydraulic, three-phase
Station formats	Single / double station
Product	Flexible PVC / rubber paver and tile moulds
Published output*	15–30 / 30–60 mould pairs per hour
Published hydraulic pressure*	60 ton class
Published table size*	600×600 / 800×500 mm
Published total power*	27.7 / 39.9 kW
Published drive power*	20.5 / 35.5 kW

*Reference values for comparable single- and double-station paver-mould machines. Final Gangotry specifications and output depend on mould size and PVC formulation.

Get paver-machine quote

06 · Footwear series

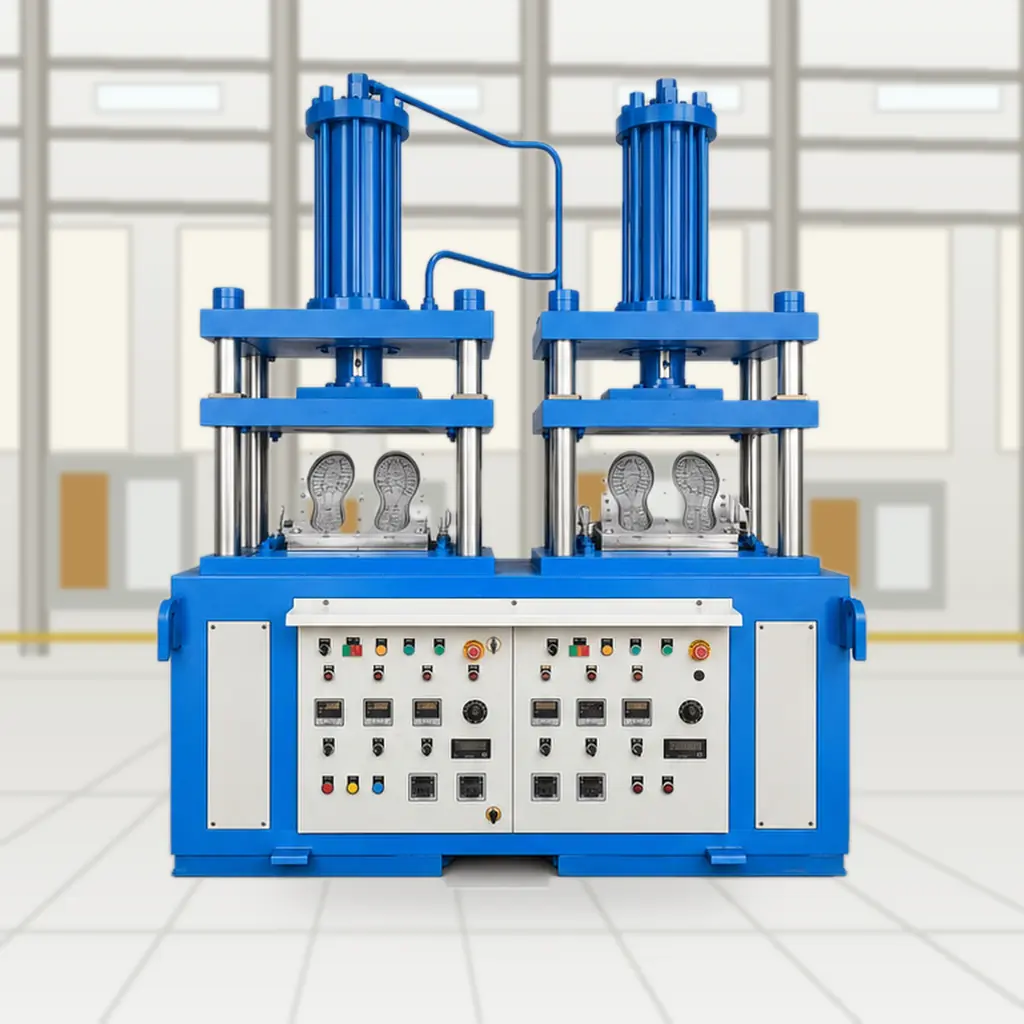

TPR and PVC Sole Moulding Machine

Automatic two-station hydraulic moulding for footwear soles in PVC, TPR and compatible thermoplastic compounds, configured against the sole mould and target output.

PVC / TPR / TPU 2 stations* 60–220 pairs/hr*

Operation	Automatic hydraulic, three-phase
Compatible materials	PVC, TPR and TPU
Stations	2
Published output*	60–220 pairs per hour
Published clamping force*	100 ton
Published screw diameter / speed*	65 mm / 220 rpm
Published mould size*	300×400 mm
Published connected power*	Approx. 34.4 kW
Cooling / oil tank*	Water cooled / 350 L
Published machine weight*	Approx. 3,700 kg

*Reference values for a comparable two-station sole-moulding configuration. Final Gangotry values are confirmed against the sole mould, compound and output target.

Get sole-machine quote
